Fully-Auto Bio-Chemistry Analyzer

Model: HM-028BA

General information

Machine type:	Random access, open reagent & locked reagent (optional)
Test speed:	Constant 200 tests/hour (Mono reagent or double reagent)
Test principle:	Colorimetric method, turbidimetry
Test method:	1 point end, 2-point end, Fixed-Time, Kinetics
Calibration type:	Linear & nonlinear

Features

Product Advantages

Multifunctional precision sampling probe

External & internal mirror polish, external & internal probe washing
Dedicated sampling probe equipped with sensitive liquid sensor, timely feedback of reagent & sample residuals
Collision protection, automatic probe depth adjusting

Excellent mixer design

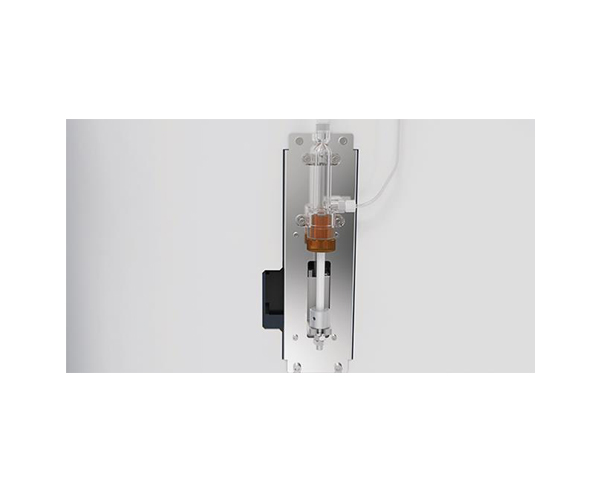

High precision ceramic syringe

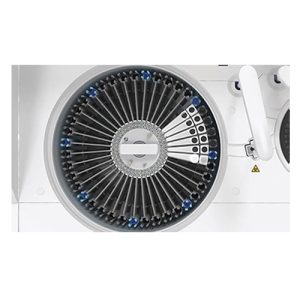

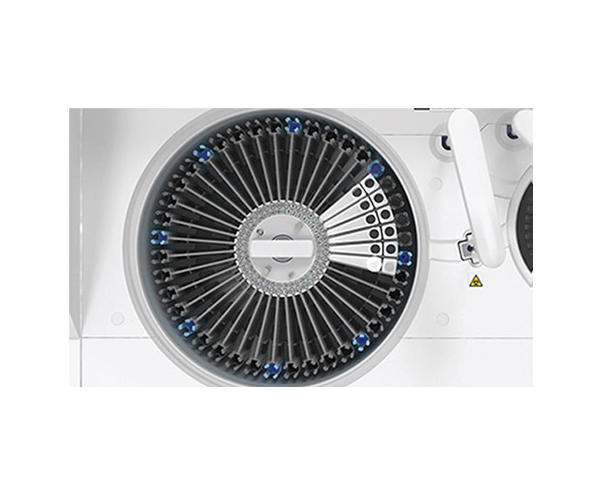

Reagent tray & Sample tray

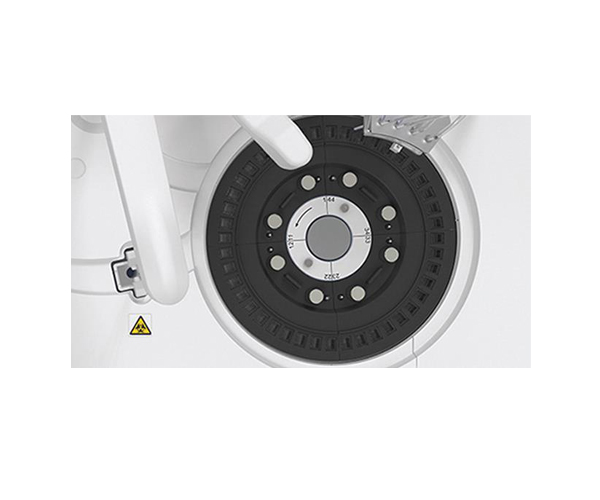

Reaction tray

Advanced operating system

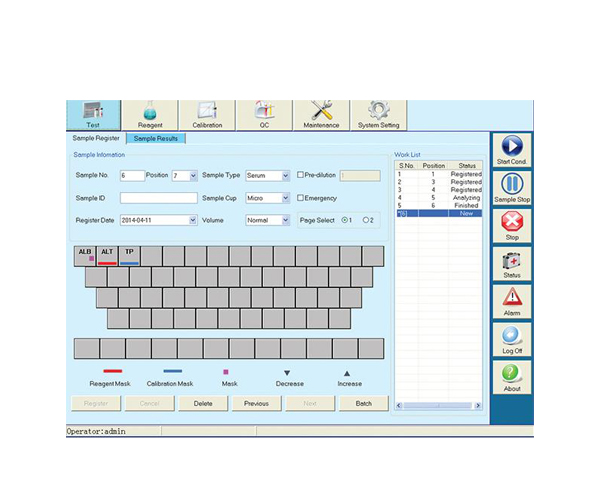

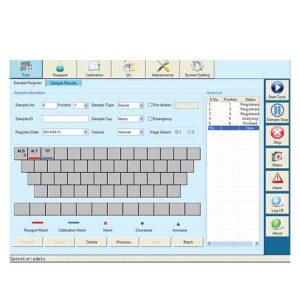

User friendly software interface simple, easy-to-operation
Sample automatic dilution (decrease, increase, normal)
Reaction results automatic checking and warning, calibration result automatic checking, warning alarm log
Linear & nonlinear calibration, multi-points calibration up to 8 points
Quality control apply to Westgard, L-T plot, cumulative

Technical specifications

Sample unit

Sample tray:	40 sample positions
Sample tube:	Micro cup & test tube & blood collection tube can be used. (12-13) mm X (25-100) mm
Sample volume:	2-30μL, step by 0.1μL
Sample probe:	Liquid surface detection, timely tracking for liquid volume. Collision avoidance
Sample barcode :	Sample barcode reader (optional)

Reagent unit

Reagent tray:	80 reagent positions (40 for R1 & 40 for R2), Non-stop cooling system with Peltier pad inside, 24 hours 2°C-14°C, open system, could accept any reagent.
Reagent volume :	20-300μl, step by 1μl
Reagent needle:	Liquid surface detection, timely tracking for liquid volume. Collision avoidance.
Regent barcode:	Regent barcode reader (optional)

Reaction unit

Reaction tray:	44 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance.
Reaction volume:	150μl-330μl
Reaction time:	10 minutes
Temperature:	Peltier pad incubation system, reaction temperature (37°C ± 0.1 °C)

Mixing system

Mixer:

Paddle-type mixing, effective reducing of carry-over

Optical system

Light source:	Halogen lamp
Wavelength:	340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm; 700nm (4 more options)
Absorbance range:	0-4.0 Abs
Resolution:	0.0001 Abs

Operating system

Operation system:	Windows XP, Windows 7, Windows 8, Windows 10
Data processing:	Automatic calibration, test combination, effective time management of reagents, serum index, whole process detection, linear expansion of enzyme, blank deduction, dirty cuvette memory, cross infection prevention, patient information memory and association input, automatic report audit, data fuzzy query, report statistics and printing, reference range grading, alarm information classification, user operation privilege classification management.
Report printing:	6 formats optional, support custom pattern
interface:	TCP/IP network interface
