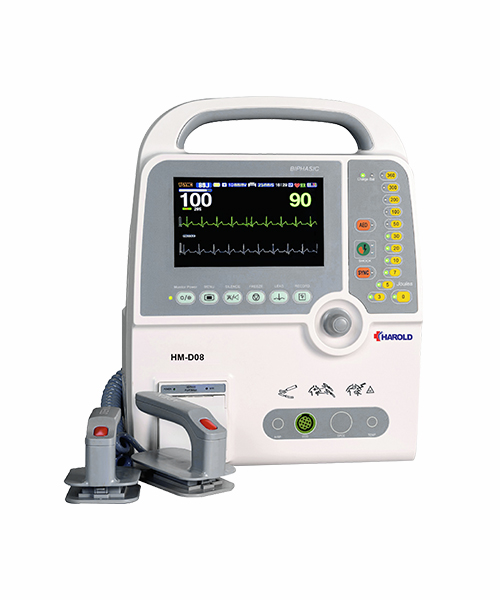

Biphasic Defibrillator Monitor with AED

Technical specifications

Power:

AC-DC dual-use: Use the batteries,

AC100V~240V, 50/60 Hz.

Main Unit:

Portable

Dimensions: L320xW205xH410

Weight:7.5kg

Display

• Screen Type: High-resolution display, TFT colour display
• Screen Size: 7 inches (17.7cm) diagonally
• Sweep Speed: 12.5/25/50 mm/sec
• Information: Heart Rate, Lead, Alarm On/Off, Delivered Energy
• Resolution: 800X480

ECG

• Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.
• Lead Selection: Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V.
• ECG Size: 2.5, 5, 10, 20, 30 mm/mV display on monitor.
• Heart Rate: 20-350 BPM.
• Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation

Defibrillator

• Waveform: Biphasic
• Defibrillator type: Manual External Synchronous/Asynchronous Defibrillation.
• Charge Time: Less than 10 seconds to 360 Joules
• Energy Display: Monitor display indicates both selected and delivered energy.
• Charge Prompt Type: Voice and visual prompts.
• Energy Selection: Selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules
• Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)

AED

• Discharge Control: Control on device front panel.
• Voice prompts and screen prompts.
• Energy Programmable Sequence:

200,300,360 Joules;

150,150,200 Joules;

50, 75, 100 Joules;

30, 30, 50 Joules;

Battery Description

• Standard Type: Li-ion battery Li1104c 11.1Vdc 4000mAh X2
• Standard Capacity: Up to 10 hours ECG monitoring or 60 full-energy discharges.
• Low Battery Indicator: Flashing low battery icon on display and Bat Indicator on the panel of defi-monitor be on
• Recharge Rate: 80% in 3 hours. 100% in 5 hours.

Built-in Recorder

• Paper: 50 mm thermal.
• Printing Method: High-resolution, thermal print head.
• Record date, time, sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform
• Print mode
• HR exceed limits alarm recording
• Auto timed recording
• Real-Time Recording
• Defibrillation discharge trigger recording
  • Composite Paddle
  • Paddle Pallet
  • Battery Cover
