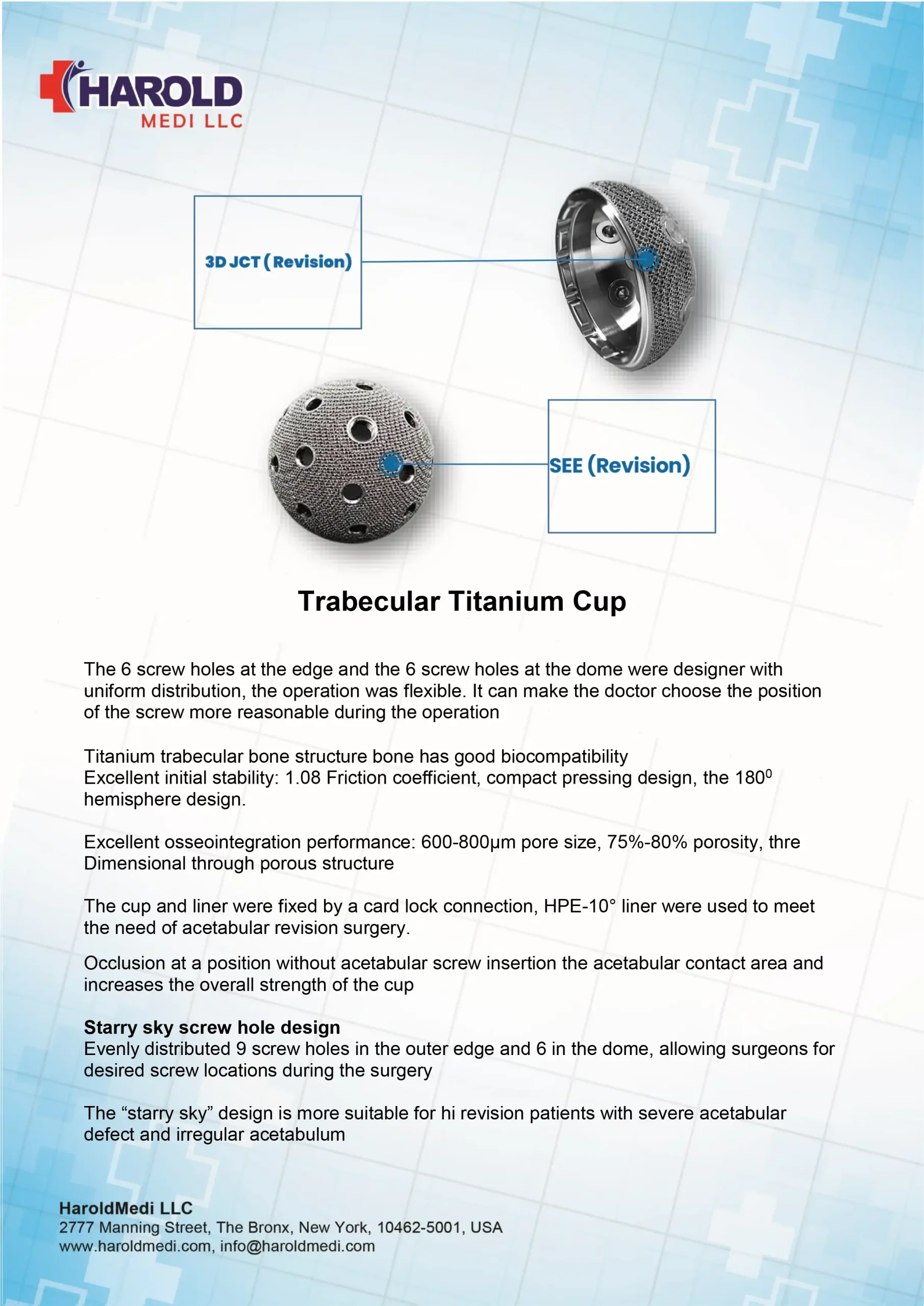

Trabecular Titanium Cup

The 6 screw holes at the edge and the 6 screw holes at the dome were designer with uniform distribution, the operation was flexible. It can make the doctor choose the position of the screw more reasonable during the operation

Titanium trabecular bone structure bone has good biocompatibility Excellent initial stability: 1.08 Friction coefficient, compact pressing design, the 180⁰ hemisphere design.

Excellent osseointegration performance: 600-800µm pore size, 75%-80% porosity, thre Dimensional through porous structure

The cup and liner were fixed by a card lock connection, HPE-10° liner were used to meet the need of acetabular revision surgery.

Occlusion at a position without acetabular screw insertion the acetabular contact area and increases the overall strength of the cup

Starry sky screw hole design

Evenly distributed 9 screw holes in the outer edge and 6 in the dome, allowing surgeons for desired screw locations during the surgery

The “starry sky” design is more suitable for hi revision patients with severe acetabular defect and irregular acetabulum
